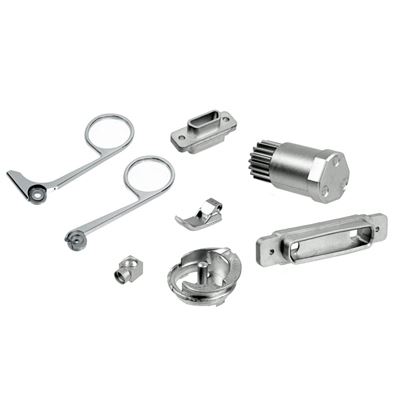

Medical Instrument, Equipment Device Parts | Precision MIM Metal
MIM Parts Cost Effective Design Flexibility/ Material Variety and Integrity
MIM material
| Material | Composition |
| Low alloy steel | Fe-2Ni, Fe-8Ni |
| Stainless steel | 316L, 17-4-PH |
| Tool steel | 42CrMo4, M2, Skd-11, C45 |
| Carbide | WC-Co(6%) |
| Ceramics | Al203, ZrO2, SiO2 |
| Tungsten alloy | W-Ni-Fe, W-Ni-Cu, W-Cu |
Compare with other process
| Parameter | MIM | CONVENTIONAL PM | MACHINING | INVESTMENT CASTING |
| Density | 98% | 88% | 100% | 98% |
| Tensile Strength | High | Low | High | High |
| Elongation | High | Low | High | High |
| Hardness | High | Low | High | High |
| Min. Wall Thickness | 0.5 mm | 1 mm | 0.5 mm | 2 mm |
| Complexity | High | Low | High | Medium |
| Surface Finish | High | Medium | High | Medium |
| Production Volumes | High | High | Low | Medium |
| Range of Materials | High | High | High | Medium-High |
| Cost | Medium | Low | High | Medium |
1, 100% inspection before shipment.
2, Satisfied packing, carton, wooden case, pallet,or according to your requirement.
3, Samples are within 35-40 days after the receipt of the deposit. production will be finished about 25-30days after samples confirma
process | metal injection molding, powder metallurgy |
applied software | pro-e, CAD, PDF |
material | iron alloy , stainless steel, copper. ceramic, tungsten alloy |
surface finish | black, plating, PVD, polishing, sandblasting |
tolerance precision | ±0.02~0.05mm |
quality system | 100% inspection before shipment |
dimensions | as per customer's requests |
samples qty | 5-10 pcs(for free) |
certification | ISO 9001, TS 16949, IECQQC080000 |
packgae | plastic bag and carton or as customer's requests |
lead time | base on the qty of order(usually 40-45 days) |
